Oval Vent 6mm Tail, 197mm x 9mm Slotted (6998000)

Description	The oval vent has a 6mm tail and is designed to fit through 6mm ply. The vent is an ideal product for giving ventilation to cupboards / lockers. To fit the vent a routed slot 197mm x 9mm is required and the vent pushes into the plywood using interference
Material	Polypropylene
Size/Capacity/Dimensions	197mm x 9mm
Typical units of measure	EA
Colour codes	000, 200, 220
Product Category	Air Vents / Ventilation

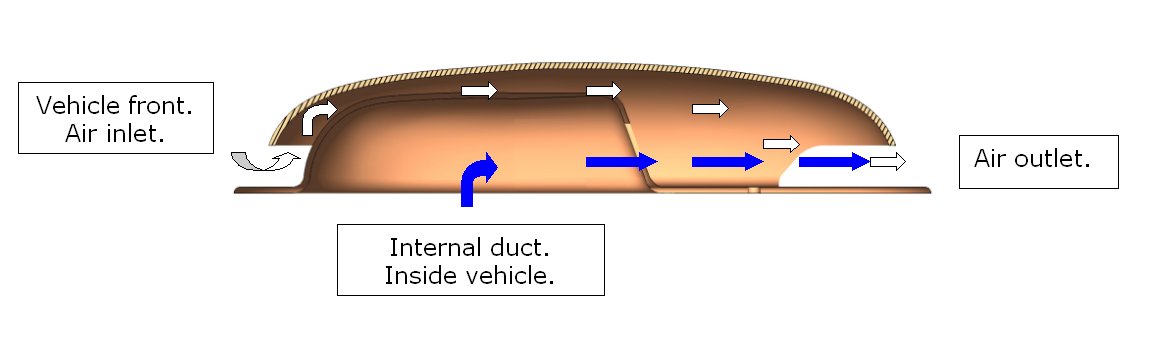

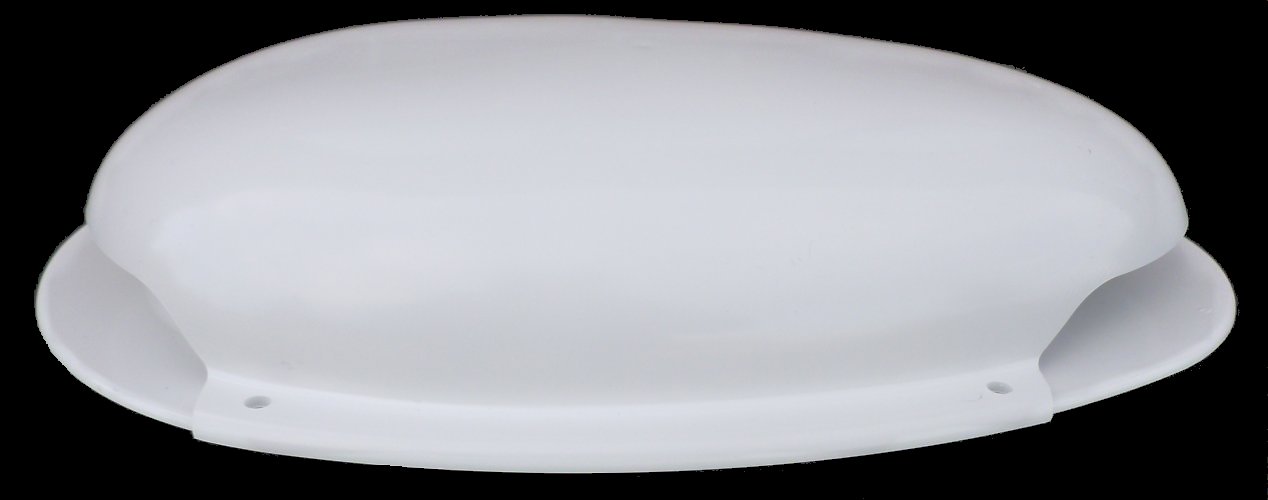

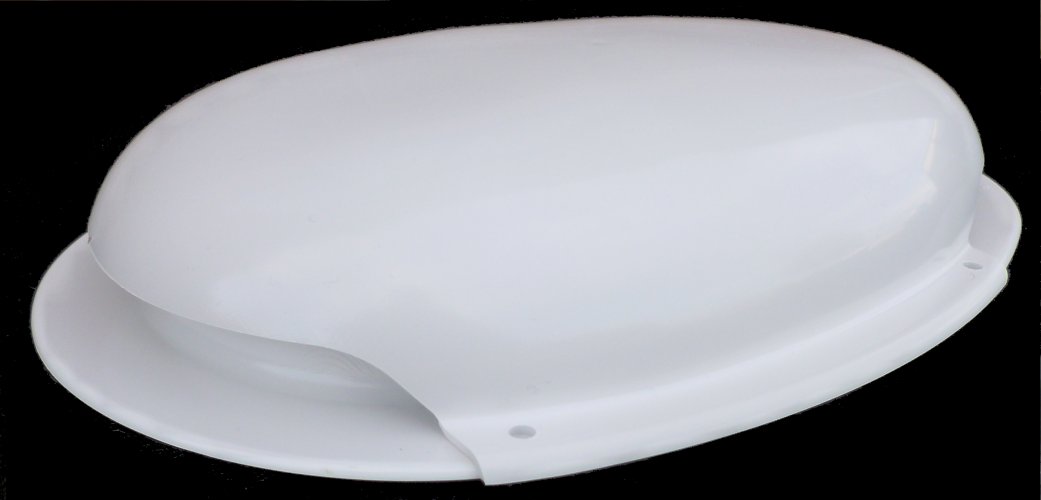

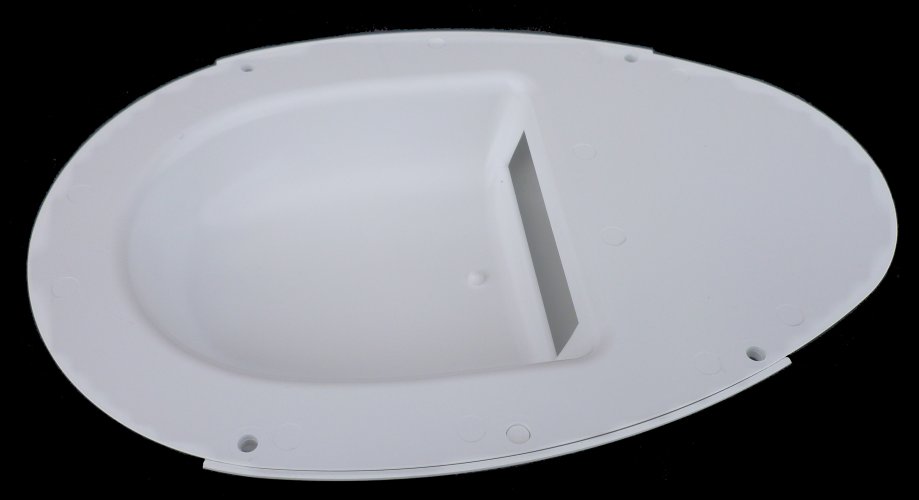

Description	The Roof vent will extract air whilst the vehicle is in motion. 4 x 5mm screw holes give the vent a secure fixing. Dimensions W190mm x L285mm x H40mm. Hole require no greater than 120mm dia on centre line. This product is ideal for venting any moving vehicle / compartement that requires a fixed free flowing air. Ideal for vans, trailers, horse boxes. Material is LURAN, external grade bondable material.
Material	LURAN S, ASA
Size	285mm x 190m x 55mm
Typical Order Qty	EA
Colour	White
Product Category	Air Vents / Ventilation

Description	The oval vent has a 10mm tail and is designed to sit at the back of the furniture/worktop. The vent is an ideal product for giving ventilation to cupboards, lockers and work tops. Free flow area 1500sqmm.
Material	ABS
Size	200mm x 20mm x
Typical Order Qty	100
Colour	A range of colours are available
Category	Air Vents / Ventilation
